Description
Overview
Essential details
- Mixer Type:
-
Ribbon
- Barrel Volume (L):
-
500
- Material Processed:
-
Plastics, Chemicals, Food, Medicine
- Max. Loading Volume (L):
-
10000 L
- Range of Spindle Speed(r.p.m):
-
1 – 36 r.p.m
- Max. Loading Capacity:
-
500KG
- Weight (KG):
-
1500 KG
- Material:
-
SUS304, SUS304L, SUS316, SUS316L, Ti
- Condition:
-
New
- Product Type:
-
Powder
- Application:
-
Powder
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
MKL
- Voltage:
-
110V-480V customized
- Power (kW):
-
10 kW
- Warranty:
-
1 Year
- Key Selling Points:
-
Automatic
- Applicable Industries:
-
Manufacturing Plant, Energy & Mining, Other
- Showroom Location:
-
None
- Marketing Type:
-
Other
- Machinery Test Report:
-
Provided
- Video outgoing-inspection:
-
Provided
- Warranty of core components:
-
1 Year
- Core Components:
-
Motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine, Other
- Product name:
-
Industrial Powder Mixer
- Function:
-
Mixing Raw Material
- Application scope:
-
Chemical Cosmetic Food Pharmacy
- Control:
-
PLC+ Touch Screen/Button control
- Discharge:
-
Outlet Discharge
- Speed:
-
Variable Control
- Be suitable for:
-
Powder Etc
Supply Ability
- Supply Ability
- 50 Set/Sets per Week
Packaging & delivery
- Packaging Details
Standard wooden box packaging
- Port
Guangzhou
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 1 >1 Lead time (days) 15 To be negotiated
Product Overview
Ribbon Blender Mixer
Ribbon Blender contains a U-formed flat trough and an exceptionally structured Double Helical Ribbon Agitator turning inside. Lace Blenders depend on a demonstrated instigator development that gives a triple blending activity guaranteeing quick, effective mixing.
A substitute structure is the oar fomenter. The oars are situated to move the material in restricting horizontal ways just as
radially. The oar configuration is commonly utilized where friable materials are being mixed, and when clumps as little as 15% of the all out limit will be blended in the ribbon blender.
The “V” blender is a proficient and flexible mixing machine for blending dry powders homogeneously. Roughly two third of the volume of the Blender must be filled to guarantee appropriate blending.
Utilizing “V” Blender delivers best outcome for powders because of medium speed mixing and “V” state of compartment.
A substitute structure is the oar fomenter. The oars are situated to move the material in restricting horizontal ways just as
radially. The oar configuration is commonly utilized where friable materials are being mixed, and when clumps as little as 15% of the all out limit will be blended in the ribbon blender.
The “V” blender is a proficient and flexible mixing machine for blending dry powders homogeneously. Roughly two third of the volume of the Blender must be filled to guarantee appropriate blending.
Utilizing “V” Blender delivers best outcome for powders because of medium speed mixing and “V” state of compartment.

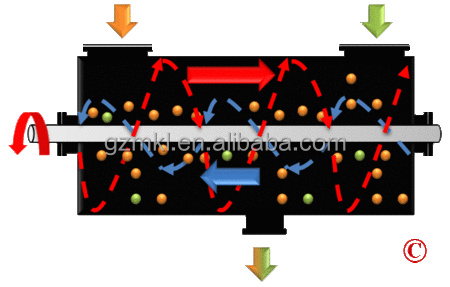

Ribbon blender work principle
Custom manufactured in stainless steel.
Sanitary finishes available，food grade standard.
Complete mix cycles of less than four minutes.
Available in 100 to 2000L capacities.
Constructed with heavy-plate tub bottom and end plates.
A variety of drive assembly designs are available including shaft mount, gear head or direct drive.
Sanitary finishes available，food grade standard.
Complete mix cycles of less than four minutes.
Available in 100 to 2000L capacities.
Constructed with heavy-plate tub bottom and end plates.
A variety of drive assembly designs are available including shaft mount, gear head or direct drive.
FEATURES AT A GLANCE
* Equipment advantages: easy installation, fast mixing speed, high mixing uniformity, convenient cleaning, tailored service.
* Equipment specifications: 100L – 1000L
* Mixing amount each time: 100KG – 600KG (specific gravity standard is 1)
* Mixing time: 6-10 minutes (special materials are determined by customers)
* Drive power: 3 KW-11 KW
* Equipment material: SUS304, SUS316L, Carbon steel, etc.
* Applicable materials: loose dry powder and crystal particles with a specific gravity of 0.1-1.4, especially for rapid mixing in the same batch.
* Equipment specifications: 100L – 1000L
* Mixing amount each time: 100KG – 600KG (specific gravity standard is 1)
* Mixing time: 6-10 minutes (special materials are determined by customers)
* Drive power: 3 KW-11 KW
* Equipment material: SUS304, SUS316L, Carbon steel, etc.
* Applicable materials: loose dry powder and crystal particles with a specific gravity of 0.1-1.4, especially for rapid mixing in the same batch.
PRODUCT SPECIFICATIONS
|
Model
|
A mixed(kg)
|
Power(kw)
|
Spindle speed(r/min)
|
|
200
|
80-100
|
3
|
65
|
|
500
|
200-250
|
5.5
|
60
|
|
1000
|
400-500
|
7.5
|
42
|
|
2000
|
800-1000
|
15
|
32
|
|
3000
|
1200-1500
|
18.5
|
32
|
|
4000
|
1600-2000
|
22
|
30
|
|
6000
|
2400-3000
|
37
|
28
|
|
8000
|
3200-4000
|
45
|
28
|
|
10000
|
4000-5000
|
55
|
22
|

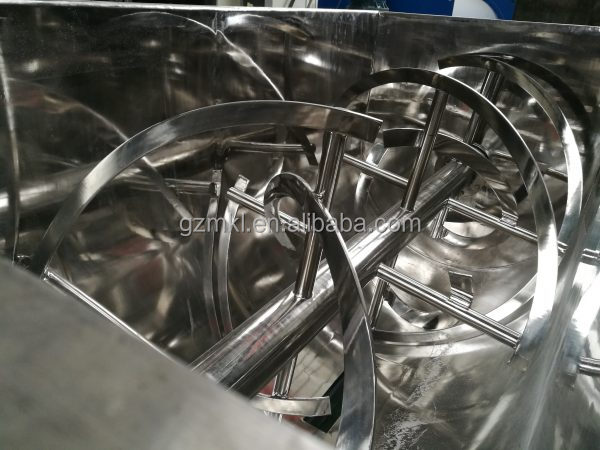

High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.
The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.
The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

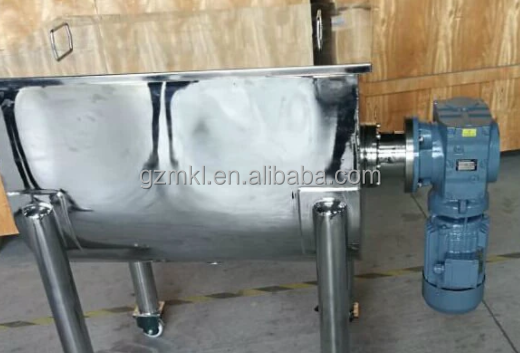

Mixing motor
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor.
Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear
reducer. Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.
Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear
reducer. Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

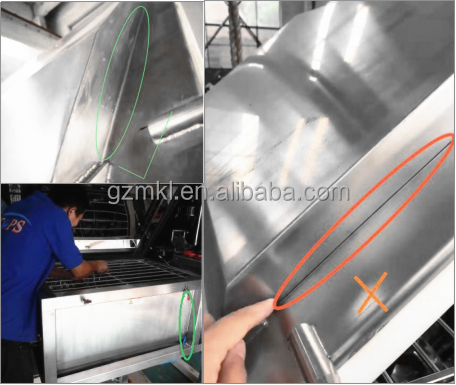

Full welding
The whole welding place of the machine are full welding, including the ribbon, the frame, the tank, etc. Especially for the lid of the barrel, the full welding technology makes sure there is no gap to hide material.

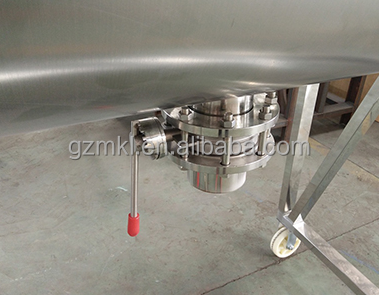

Stainless steel outlet valve
The Stainless steel butterfly valve, it is manual operation and much reliable

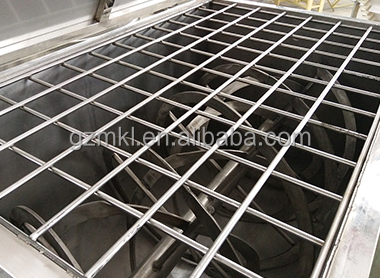

Protection grid
Safety grid to avoid personnel Injury and prevent workers from falling into.

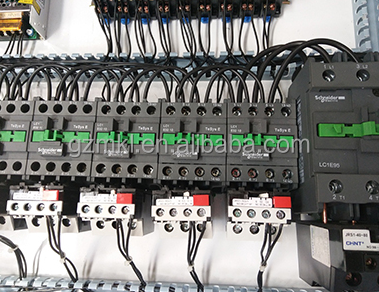

Electrical component
Circuit breaker,Emergency switch etc adopts world-famous brand Schneider.
APPLICATION RANGE:
Horizontal ribbon mixers are widely used in chemical, pharmaceutical, food, building materials and other fields. They can be used for mixing powder and powder, mixing powder with a small amount of liquid, and mixing powder and particles.
Recommend Products
view more >>Recommended by seller
high pressure vacuum homogenizer emulsifier mixer for body cream
BDT 53,179.80 – BDT 85,087.68 / set
1 set
Mxing Tank with Heater Detergent Liquid Soap Making Machine
BDT 340,350.72 – BDT 372,258.60 / set
1 set
CE certification liquid detergent bottling machine shampoo filling line
BDT 1,063,596.00 – BDT 1,276,315.20 / set
1 set

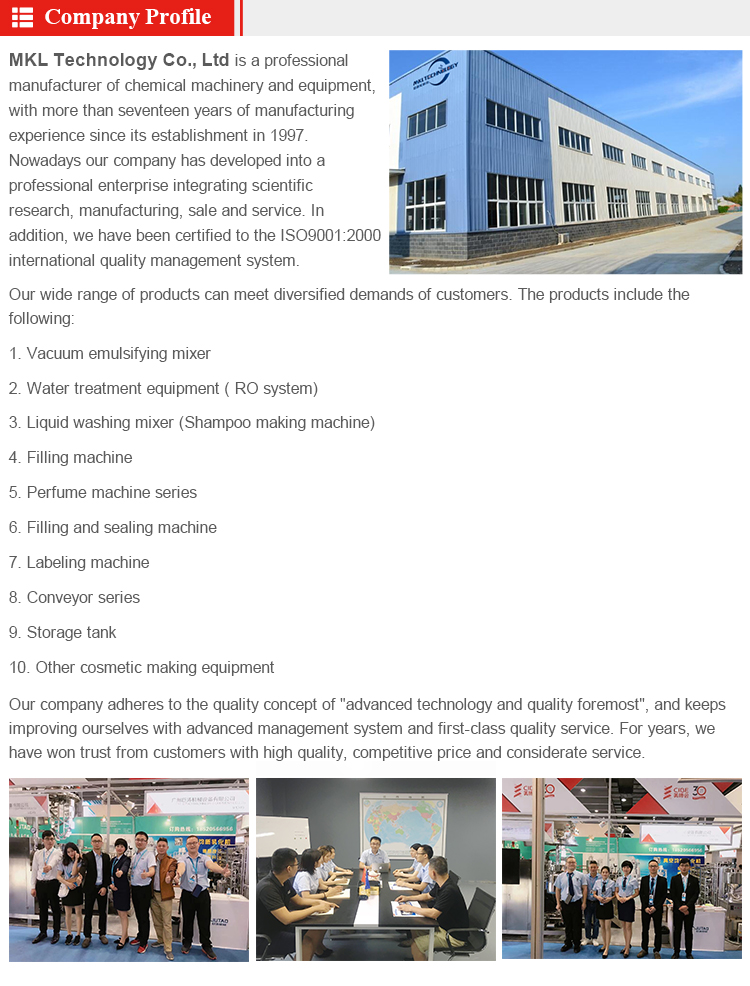

Company Profile
Our Advantages
Our Visitor

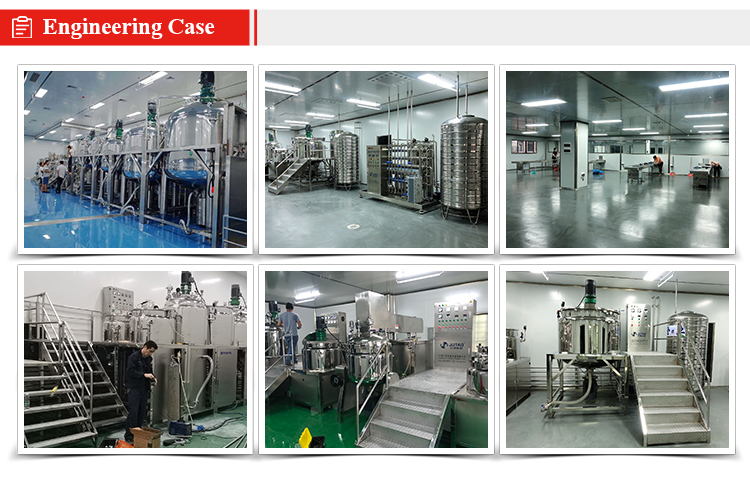

Engineering Case
Payment & Shipping

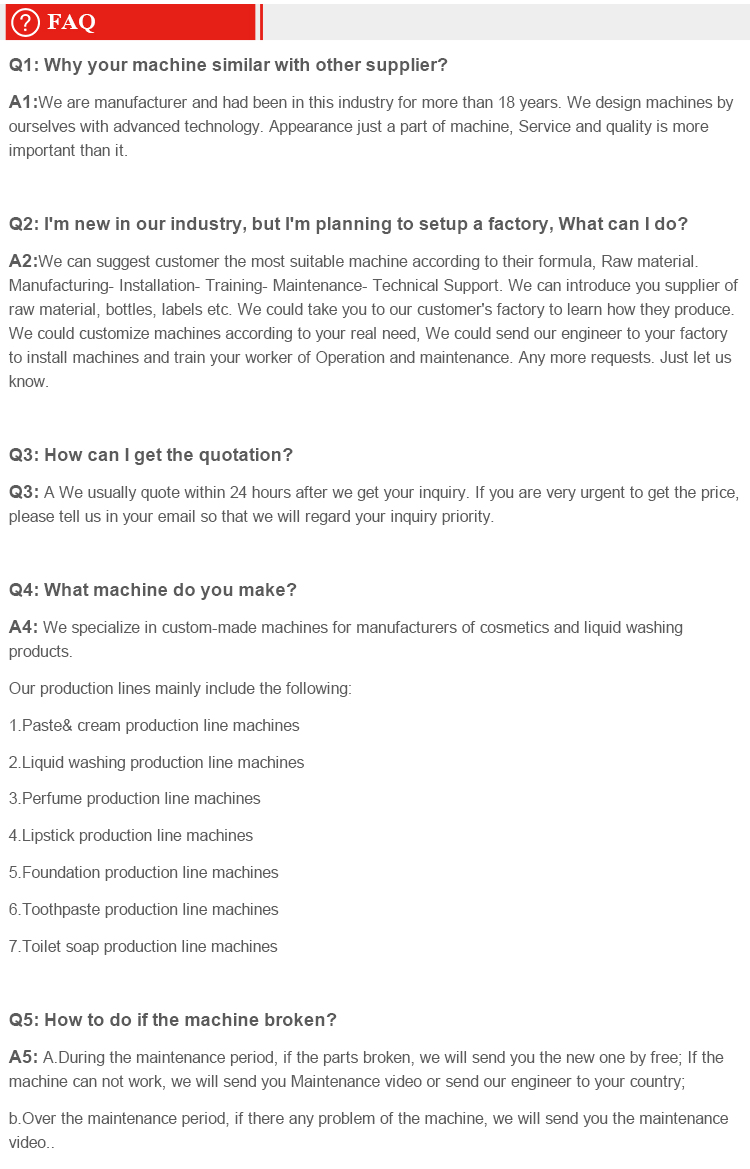

FAQ
