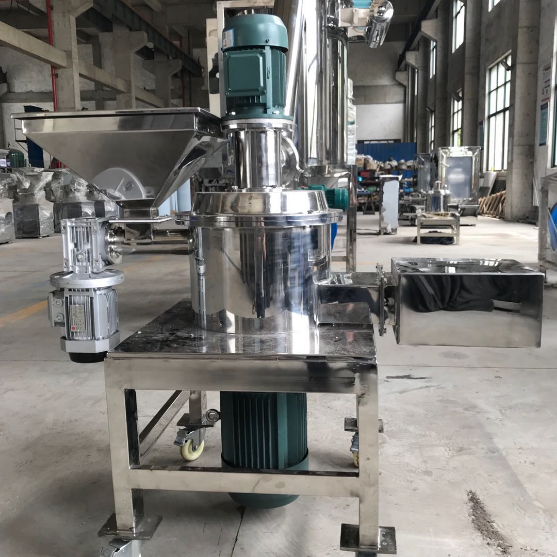

Stainless Steel Superfine Micronized Powder Grinding Ultra Fine Pulverizer Grinder Machine
WKW series air classifying mill pulverizer is used for fine and ultra-fine grinding of soft to medium hard, brittle, crystalline and fatty materials with a controlled particle size distribution.
WKS series air classifying mill pulverizer are high-energy vertical grinding mills incorporating an internal air classifying wheel to controll product particle size distribution.
WKS series air classifying mill pulverizer are high-energy vertical grinding mills incorporating an internal air classifying wheel to controll product particle size distribution.
Material is fed into the grinding chamber via screw feeder and strongly impacted and collided into fine powder between the high-speed disc rotor and teeth liner.

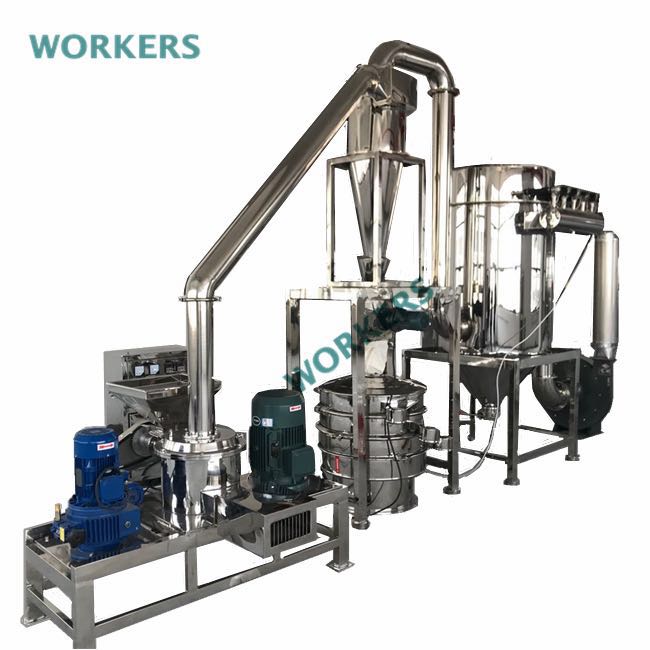

After grinding process, fine powders are carried to the classifying section by airflow where qualified powders are suctioned into the interior of the classifying wheel and discharged as products; coarse powders flow through the inner guide ring back to the grinding chamber because of centrifugal force for re-grinding. Final product is collected by cyclone and bag house.
WKS series air classifying mill pulverizer has been widely used for milling/pulverizing high fiber content materials, heat sensitive materials and brittle materials in food, chemical and pharmaceutical industry.
WKS series air classifying mill pulverizer has been widely used for milling/pulverizing high fiber content materials, heat sensitive materials and brittle materials in food, chemical and pharmaceutical industry.
●Made of 304 stainless steel
●GMP and food grade design
●Air classifying
●Customized service
●High Efficiency Easy Operate
●Video technical /Online support

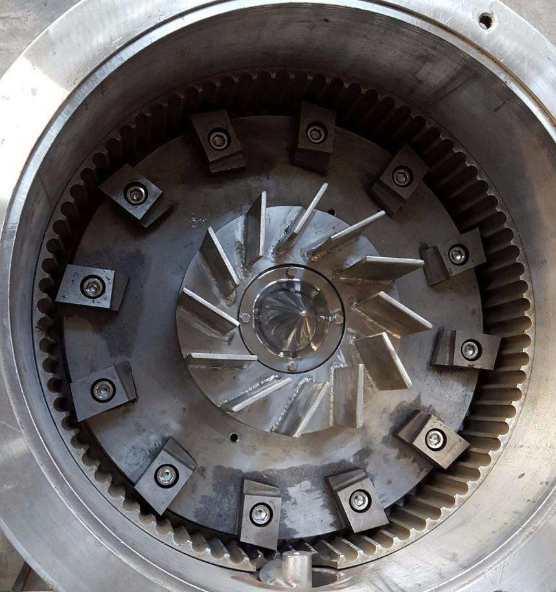

GRINDING CHAMBER & DISC:
●Alloy steel disc and cutter head
●Precision manufactured parts
●Air classifying
●Screw feeding
●Frequency control
●Dymatic balance support

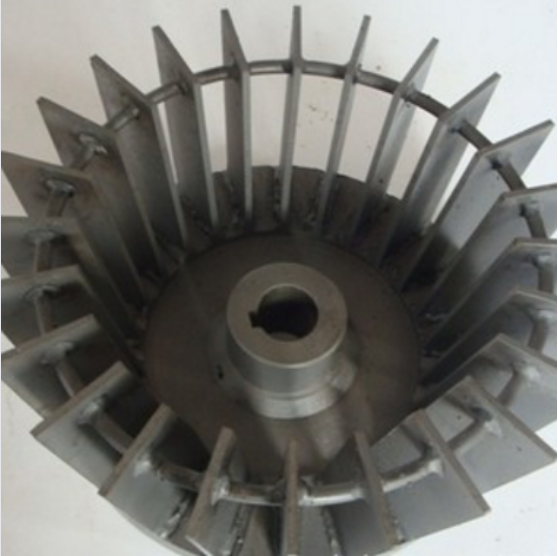

AIR CLASSIFIER
●Material of 304 stainless steel
●No screen, simpler classification
●Variable frequency speed regulation, easier operation
●Particle size distribution can be accurately controlled
DRIVE MOTOR
●Triple phase asynchronous motor
●All copper motor, excellent performance
●Frequency control
●Feeding motor/grinding motor/air classifier motor/air locker motor/draft fan
●Customized

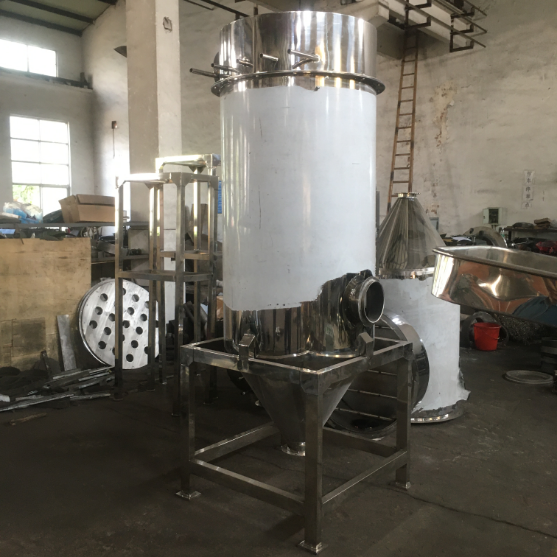

DUST COLLECTOR
●Pulse dust femoval system
●Bag filter
●Visual Window
●Made of 304 stainless steel

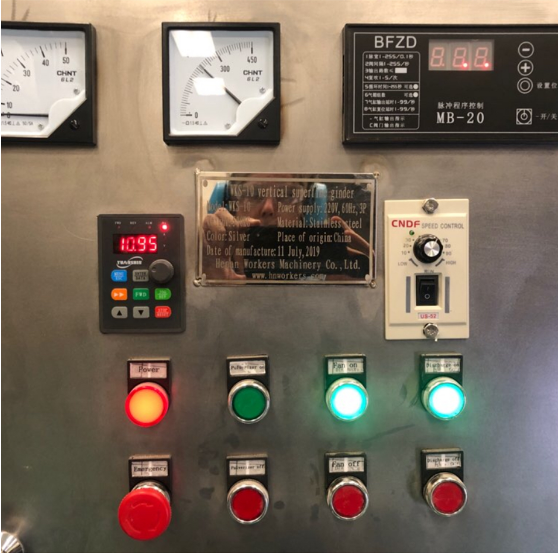

CONTROL SYSTEM
●Button/PLC
●Frequency converter
●Emergency stop
●Easy to operate
Specification
|
Model
|
WFJ-10
|
WFJ-20
|
WFJ-30
|
WFJ-60
|
|
Capacity (kg/h)
|
10-200
|
20-400
|
30-800
|
50-1200
|
|
Input size (mm)
|
≤10
|
≤12
|
≤12
|
≤12
|
|
Output size (mesh)
|
80-320
|
80-450
|
80-450
|
80-450
|
|
Total installation power (KW)
|
11.5
|
22.5
|
46
|
84.15
|
|
Rotating speed (RPM)
|
5800
|
5800
|
5800
|
5800
|
|
Installation dimension (mm)
|
5410x1660x2500
|
5500x1800x3100
|
9000x2200x4000
|
9000x2700x5280
|
|
Gross weight (kg)
|
850
|
1200
|
1500
|
3200
|
Packing & Delivery

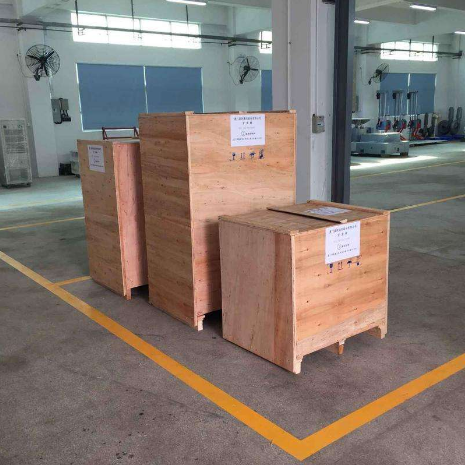

Package:Wooden Case (fumigation free) or as per customers’requirements
Shipping:within 5-7 working day after receiving the balance payment.
Customer photos
FAQ
Q: What information should be provided to get a quotation?
A: Each air classifying mill pulverizer is specially designed for each customer according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) Detailed information of material that you want to mill.
2) Size of your feeding material
3) Particle size after ground
4) Input capacity in kg/h
Q: How the machine will be delivered ?
A: The system is usually dismantled into grinding chamber, cyclone, bag house, draft fan and control cabinet for shipping. Each part is packed in box made by plywood.
Q: What kind of after sale service you can provide?
A: We have professional after sale service team who
can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
Q: What standard models do you have?
A: We have the following standard models
