Description
- Condition:
-
New
- Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Construction works , Energy & Mining
- Max Working Pressure(MPa):
-
2.01 MPa
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
Provided
- Marketing Type:
-
New Product 2020
- Warranty of core components:
-
3 years
- Core Components:
-
Pressure vessel
- Capacity:
-
410L
- Place of Origin:
-
Guang Dong,China
- Brand Name:
-
Hua Nan
- Dimension(L*W*H):
-
750*850*1880
- Weight:
-
267
- Warranty:
-
3 Years
- Key Selling Points:
-
High Vacuum Insulation multi-layers
- Showroom Location:
-
Egypt, Viet Nam, Indonesia, Russia

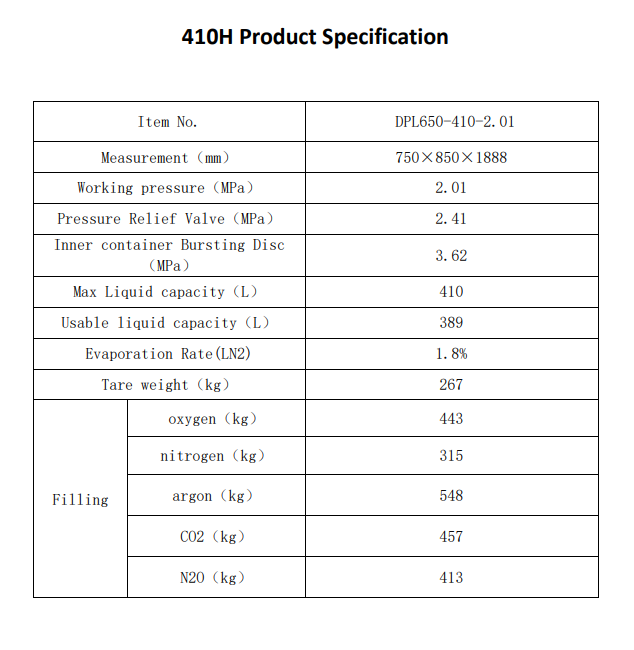

- Model Number::
-
DPL650-410-2.01
- Material::
-
SUS 304
- working pressure::
-
20.1bar
- Application Medium::
-
LOX,LN2,LAr/LCO2
- Usage::
-
Storing liquefied gas
- Design::
-
Vertical
- Static evaporation rate(%/d)::
-
1.8%/d
- Appearance::
-
silver colour Refined Polish
- Insulated Layer:
-
multiple-25 Layers
- Certification::
-
ISO14001:2015/GB24159-2009/KGS
- Supply Ability
- 1200 Set/Sets per Month
- Packaging Details
Packaging Details : Standard exporting packaging with nude ,nylon net,pallets or as your request.
- Port
Huang Pu/Shen Zhen
- Picture Example:
-
- Lead time:
-
Quantity(sets) 1 – 10 11 – 50 >50 Lead time (days) 7 15 To be negotiated

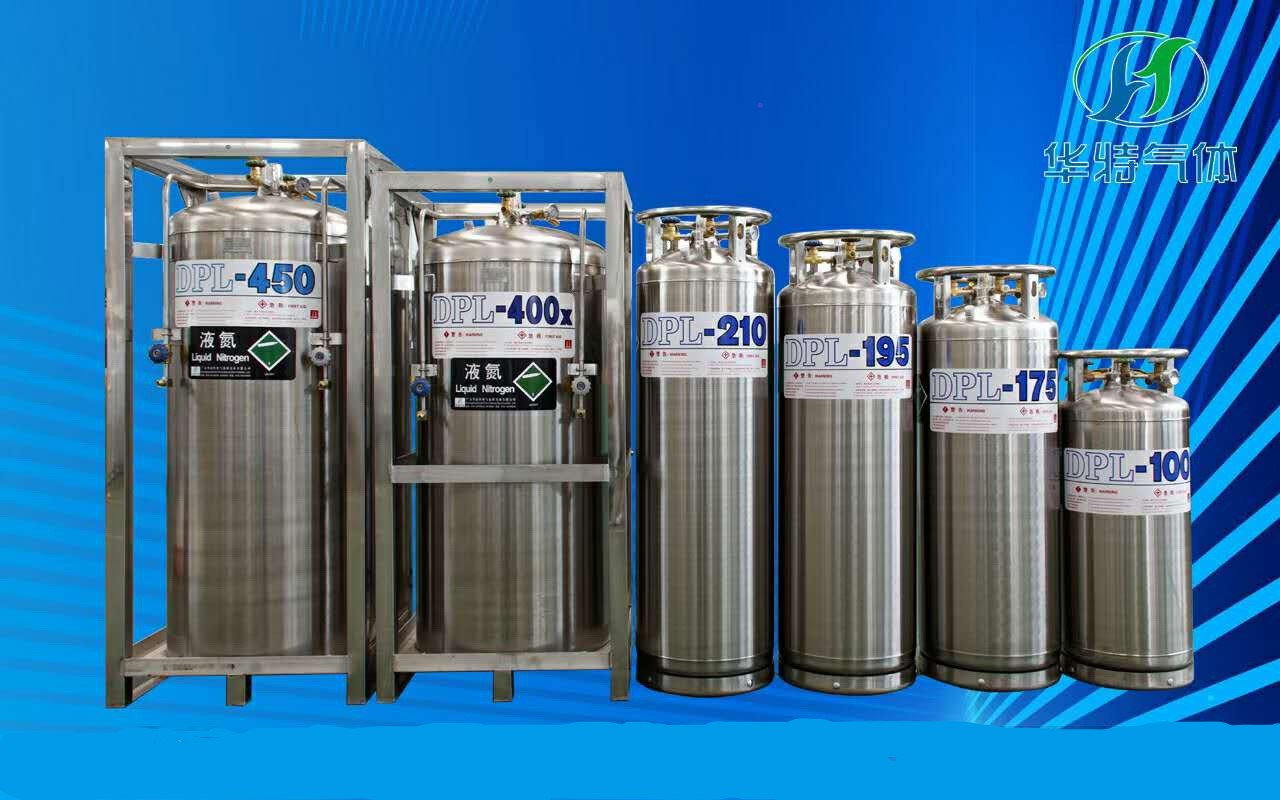

DPL series container is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications, can provide up to 9.2 cubic meters per hour continuous flow with a delivery pressure of approximately 100psig (6.9bar/690Kpa).
Main Features
* Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas
* Adopted high multi-layer insulation method to ensure the low evaporation rate.
* Inner vaporizer provides a 10Nm3/h stable continuous gas.
* Solar installation use in the priority of gas-pressure and gas space.
* Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)
* Unique design of damping ring meets the needs of frequent transportation.
* Suitable for electronics, research, chemical industry, welding, and LNG supply industries.
Part: Handling wheel & outer upper cover
Feature: the handling wheel is welded firmly and smoothly
the head cover is torispherical head,made by cold stamping, No splicing, the whole cover real thickness NOT less than 2.15mm and under refined polsh processing.
Part: Interlayer Thermal Insulstion.
Feature: There is thermal barrier of high technology in the interlayer, it includes efficient thermal barrier, vacuum and vacuum support system, which are useful for working life. Thermal barrier of high technology can stop the heat from entering the inner container by the way of thermal radiation and thermal conduction, vacuum can stop the heat from entering the inner container by the way of thermal convection.
Part: Heavy Duty Rack With wheel
Feature: Any Sudden drop, tip-over will bring abuse or dents to cylinder,which would affect the insulation system, while Carbon Steel or 304SS Rack with Wheel will make great convenience for users to transport or move the cylinder protect the cylinder from sudden damage.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine,
* Engineers available to service machinery overseas.
